P5-5LRV(33x)A AI
მარაგშია

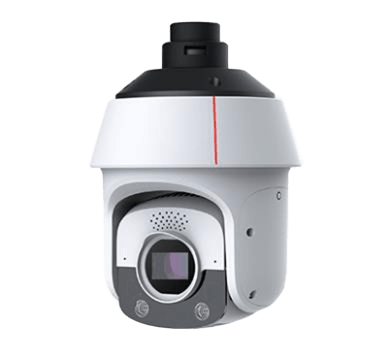

1T 5MP IR/White-Light AI PTZ Dome Camera with Intercom
- 1 TOPS computing power
- Supports automatic tracking, behavior analysis, crowd flow analysis, target detection, person detection, and object classification
- Supports backlight adaptation and overcast adaptation
- 1/2.7″ CMOS sensor
- Software-defined architecture that supports loading and upgrade of algorithms
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- Day and night customer service
აღწერა
Technical Spec
| Computing power | 1 TOPS |
| Focal length | 5.3-175mm Varifocal Motorized |
| Max Aperture | F1.6(W)-F4.4(T) |
| Image sensor | 1/2.7″ CMOS/5MP 2880(H)*1620(V) |
| IR range | 150m |
| Illumination distance | 30m |
| Digital Zoom/Optical Zoom | 16x/33x |
| PTZ rotation angle | Pan: 0°～360° Vertical-15°～90° |
| Park action | Supported |
| Tour | Supported |
| Home position | One home position |
| Target | Target detection/Not supported;/Target attribute recognition |
| Person | Person detection |
| Behavior analysis | Fast movement/Tripwirecrossing/Intrusion/Areaentry or exit/Loitering |
| Crowd flow analysis | Queue length/Head counting/Crowd flow statistics/Attendance |
| Intelligent tracking | Supported |
| Defocus | Supported |
| Open OS | Supported |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400/GB/T 28181 (2011, 2016)/ONVIF Profile S/G/T/M |
| Video encoding format | MJPEG/H.265 |
| Video encoding channels | Triple streams |
| Video frame rate | Configurable (30 fps or 25 fps); default value: 25 fps |
| Intelligent encoding | Extra265 |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| WDR | 120dB |
| HLC/BLC | Supported/Supported |
| Digital noise reduction | 2D/3D noise reduction |
| Protocols supported by IPv4 | TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1X, QoS, SMTP, and PPPoE. Note: The northbound protocol needs to adapt to the PPPoE dialup scenario. |
| Protocols supported by IPv6 | HTTPS, RTP, RTCP, RTSP, ONVIF, IPv6, ICMPv6, and DHCPv6 |
| Network port | One RJ45 10M/100M adaptive Ethernet port |
| Audio port | Supported (one-channel LINE IN and one-channel built-in MIC)/Supported (one-channel LINE OUT or one-channel Speaker) |
| Power type | AC24V,POE(IEEE 802.3At) |
| Power consumption | Maximum:22.3W,typical:8.9W |
| Operating humidity | 5% to 95%(non-condensing) |
| Surge protection | 6kV |
| IP rating | IP66 |
| Weight | Net weight 2.6kg;Gross weight 4.5kg |
| Dimensions | Device dimensions 202.6mm*202.6mm*260mm;Package dimensions 285mm*285mm*375mm |
