P4-5R(2.7-12)B AI

მარაგშია

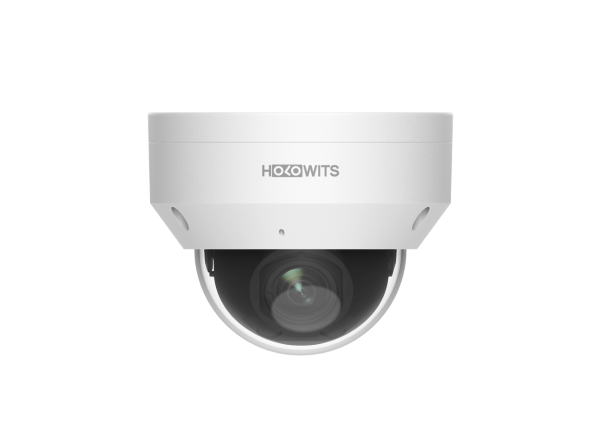

1T 5MP AI IR Fixed Dome Camera

1 TOPS computing power
Supports behavior analysis, crowd flow analysis, target detection, person detection, and object classification
Supports backlight adaptation and overcast adaptation 1/2.7″ CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
SuperCoding, reducing the bit rate by 50%

Day and night customer service

Category: AI Camera, HOLOWITS

აღწერა
მიმოხილვა (0)

აღწერა

Technical Spec

Computing power	1.0 TOPS
Memory	DDR3 256.0 MB
Flash type	SPI NAND FLASH 256.0 MB
Focal length	2.7-12mm
Max Aperture	F1.2
Lens Aperture Type	Auto-IRIS
Image sensor	1/2.7″ CMOS/5MP 2880(H)*1620(V)
Angle of view	Horizontal:32°(T) to 95°(W);Vertical:18°(T) to 52°(W)
IR range	30m
Illumination distance	30m
IR Wavelength	850nm
Target	Target detection
Person	Person detection
Behavior analysis	Fast movement/Tripwire crossing/Intrusion/Area entry or exit /Loitering/Parking detection
Crowd flow analysis	Queue length/Head counting/Crowd flow statistics/Absence detection
Data openness	GB28181/SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400/ONVIF Profile S/G/T/M
Video encoding format	H.264/H.265/SuperCoding
Video encoding channels	Dual streams
Video frame rate	30/25fps
Scene adaptation	Overcast adaptation
WDR	130db
HLC/BLC	Supported/Supported
SNR	>50dB
Primary stream resolution	2880×1620(5MP),2560×1440(4MP),2304×1296(3MP),1920×1080 (1080P),1280×720(720P),720×576(D1_PAL)
Secondary stream resolution	Secondary stream 1:720×576(D1_PAL),720×480(D1_NTSC),352×288 (CIF_PAL),352×240(CIF_NTSC)
Video bit rate	Only for H.264 and H.265 5MP:512kbit/s to 8Mbit/s; 4MP:512kbit/s to 8Mbit/s; 3MP:512kbit/s to 8Mbit/s; 1080P:512kbit/s to 8Mbit/s; 720P:256kbit/s to 4Mbit/s; D1:256kbit/s to 2Mbit/s; CIF:32kbit/s to 1Mbit/s
Digital noise reduction	2D/3D noise reduction
Mini illumination	Color: 0.02 Lux (F1.2, AGC ON, 1/30s shutter speed) B/W: 0.01Lux (f1.2, AGC ON, 1/30s shutter speed)
Audio encoding format	G.711a/G.711u/G.726/AAC (default: G.711a)
Audio sampling rate	G.711a/G.711u/G.726:8K AAC:8K/16K/22.05K/24K/32K/44.1K/48K
Audio bit rate	G.711a/G.711u: 64 kbit/s G.726: configurable (16/24/32/40 kbit/s) AAC: 8 kHz sampling rate: 16/22/24/32/48 kbit/s 16 kHz sampling rate: 24/32/48/64/96 kbit/s 22.05/24/32 kHz sampling rate: 32/48/64 /96/128 kbit/s 44.1/48 kHz sampling rate: 48/64/96/128/256 kbit/s
Protocols supported by IPv4	TCP,UDP,IPv4,DHCP,DNS,ICMP,IGMP,HTTPS,FTP,SFTP,RTP,RTSP,RTCP,SIP,ARP,SSL,NTP,SNMP(V1/V2/V3),802.1x,QoS,SMTP
Protocols supported by IPv6	HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6
Web Browser	Google Chrome, Firefox, Edge
User rights	Three user roles: administrator, advanced operator, and common operator
Security mode	User name and password authentication, 802.1X authentication, and HTTPS digital certificate
Secure boot	Supported
Alarm information	HTTPS certificate expiration/SDK certificate expiration/SDK root certificate expiration/SDK revocation certificate expiration/802.1X certificate expiration/Network disconnection/Failure to write data to disks/Media stream interrupted/Flash read/write/Version rollback
Alarm port	2 input port and 1 output port
Audio port	Supported (one-channel LINE OUT)/Supported (one-channel built-in microphone)
Power type	DC12V,PoE(IEEE 802.3af)
Power consumption	Typical: 2.62W
Operating temperature	-30℃ to 60℃
Operating humidity	5% to 95%(non-condensing)
Surge protection	4kV
IP rating	IP67
Weight	Net weight 574g; Gross weight 734g
Dimensions	Device dimensions122122102mm; Package dimensions 142×140×112mm
