P4-4R(3.6)A
მარაგშია

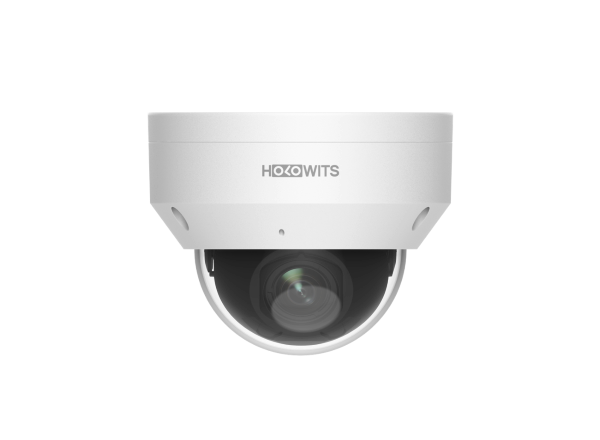

4MP IR Fixed Dome Camera
- Supports backlight adaptation and overcast adaptation
- 1/3″ CMOS sensor
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- H.265 or H.264 HD encoding at a low bit rate
- 30 m IR range
- Built-in microphone for sound pickup
- Support for PoE
- Day and night customer service
აღწერა
Technical Spec
| Memory | DDR3 0.128 GB |
| Flash type | SPI NOR FLASH 16.0 MB |
| Focal length | 3.6mm |
| Max Aperture | F1.6 |
| Image sensor | 1/3″ CMOS/4MP 2560(H)*1440(V) |
| Lens aperture type | Fixed iris |
| Angle of view | Horizontal: 78°; vertical: 42°; error: ±5% |
| IR range | 30m |
| IR Wavelength | 850 nm |
| Event detection | Motion detection, human figure detection and lens blocking detection |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol) /ONVIF Profile S/G/T |
| Video encoding format | H.264/H.265 |
| Video encoding channels | Dual streams |
| Video frame rate | 25 fps/20 fps (configurable) |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| Storage port | One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB) |
| Network port | One RJ45 10M/100Madaptive Ethernet port |
| Audio port | Supported (one-channel built-in microphone) |
| Power type | DC12V,PoE(IEEE 802.3af) |
| Power consumption | Maximum:6W,typical:4W |
| Operating temperature | -30℃ to 60℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 5% to 95%(non-condensing) |
| Surge protection | 4kV |
| IP rating | IP67 |
| Equipment Anti Corrosion | Class C |
| Weight | Net weight 488g;Gross weight 672g |
| Dimensions | Device dimensions 122 mm x 122 mm x 102 mm (without package);Package dimensions 142mm×140mm×112mm |
| Language | Simplified Chinese, English, French, Spanish, Portuguese (Europe), Portuguese (Brazil), Thai, and Turkish |
