P1-5R(2.8-12)A AI
მარაგშია

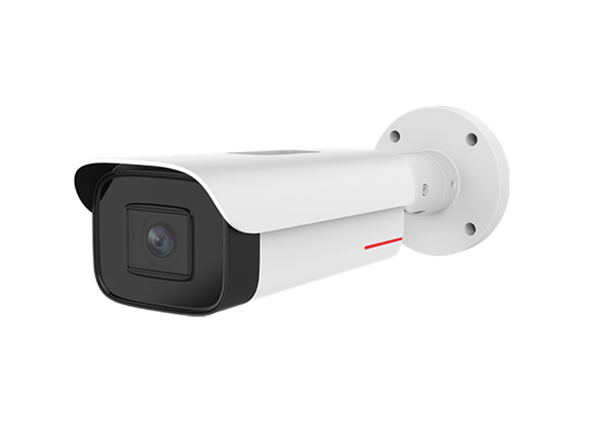

1T 5MP AI IR Bullet Camera
- 1 TOPS computing power
- Supports behavior analysis, crowd flow analysis, target detection, person detection, and object classification
- Supports backlight adaptation and overcast adaptation
- 1/2.7″ CMOS sensor
- Software-defined architecture that supports loading and upgrade of algorithms
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- SuperCoding, reducing the bit rate by 50%
- Day and night customer service
აღწერა
Technical Spec
| Computing power | 1TOPS |
| Memory | DDR3 1.0 GB |
| Flash type | SPI NAND FLASH 512.0 MB |
| Max capacity | MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256 GB |
| Focal length | 2.8-12mm |
| Max Aperture | F1.3(W)-F2.4(T) |
| Image sensor | 1/2.7″ CMOS/5MP 2880(H)*1620(V) |
| Lens aperture type | Fixed iris |
| Angle of view | Horizontal: 32°(T) to 95°(W); Vertical: 18°(T) to 52°(W) |
| IR range | 50m |
| Digital Zoom/Optical zoom | 16X/4X |
| Target | Target detection/Target attribute recognition |
| Target recognition | Supported |
| Body | Body detection |
| Behavior analysis | Fast movement/Tripwire crossing/Intrusion/Area entry or exit /Loitering |
| Crowd flow analysis | Queue length/Head counting/Crowd flow statistics |
| Defocus | Supported |
| Alarm information | HTTPS certificate expiration/SDK certificate expiration/App verification certificate expiration/Level-2 app verification certificate expiration/Mobile app certificate expiration/SDK root certificate expiration/SDK revocation certificate expiration/GB 35114 certificate expiration/802.1X certificate expiration/Log certificate expiration/Network disconnection/Network packet receiving anomaly/Full hard disk/Hard disk removal/Failure to write data to disks/Media stream interrupted/Log saving anomaly /Flash read/write/Temperature sensor fault/Hot swapping of network adapters/Video loss/Lens PT optocoupler fault/PTZ configuration anomaly |
| Open OS | Supported |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400/GB/T 28181 (2011,2016)/ONVIF Profile S/G/T/M |
| Video encoding format | MJPEG/H.264/H.265 |
| Video encoding channels | Triple streams |
| Intelligent encoding | Extra265/264/SuperCoding |
| Video frame rate | 5-megapixel: 20 fps; < 5-megapixel: 30 fps or 25 fps |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| Day/Night mode | Supported; automatic (ICR), color, B/W, and scheduled (default: automatic) |
| WDR | 120db |
| White balance | Auto/Manual/OnePush |
| HLC/BLC | Supported/Supported |
| Digital noise reduction | 2D/3D noise reduction |
| Signal-to-Noise | >45dB |
| Primary stream resolution | 2880×1620(5MP),2560×1440(4MP),2048×1536(3MP),1920×1080(108 |
| Protocols supported by IPv4 | TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1X, QoS, SMTP, and PPPoE. Note: The northbound protocol needs to adapt to the PPPoE dialup scenario |
| Protocols supported by IPv6 | HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6 |
| Storage port | One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB) |
| Alarm port | 2 input port and 1 outputport |
| Network port | One RJ45 10M/100M adaptive Ethernet port |
| Communication serial port | RS-485 port |
| Audio port | Supported (one-channel LINE IN or one-channel external MIC)/Supported (one-channel LINE OUT) |
| Power type | DC12V,PoE(IEEE 802.3af) |
| Power consumption | Maximum:12.2W,typical:3.2W |
| Operating temperature | -30℃ to 60℃ |
| Operating humidity | 5% to 95%(non-condensing) |
| Surge protection | 4kV |
| IP rating | IP67 |
| Equipment Anti Corrosion | Class C |
| IK rating | IK10 |
| Weight | Net weight 1.0kg;Gross weight 1.2kg |
| Dimensions | Device dimensions 330.4mm×108.6mm×92mm; Package dimensions 376mm×139mm×182mm |
