P4-2R(2.8-12)A AI
მარაგშია

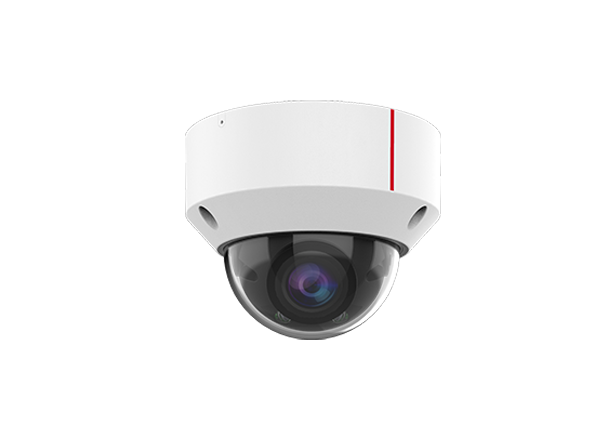

1T 2MP AI IR Fixed Dome Camera for ME Region
- 1 TOPS computing powerSupports behavior analysis, crowd flow analysis, target detection, person detection, and object classification Supports backlight adaptation and overcast adaptation1/2.7″ CMOS sensorSoftware-defined architecture that supports loading and upgrade of algorithms120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrastSuperCoding, reducing the bit rate by 50%
- Supports behavior analysis, crowd flow analysis, target detection, person detection, and object classification
- Supports backlight adaptation and overcast adaptation
- 1/2.7″ CMOS sensor
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- SuperCoding, reducing the bit rate by 50%
- Software-defined architecture that supports loading and upgrade of algorithms
- Day and night customer service
აღწერა
Technical Spec
| Computing power | 1 TOPS |
| Memory | DDR3 0.5 GB |
| Flash type | SPI NAND FLASH 512.0 MB |
| Focal length | 2.7-12mm |
| Max Aperture | F1.6(W)-F3.1(T) |
| Image sensor | 1/2.7″ CMOS/2MP 1920(H)*1080(V) |
| Lens aperture type | Fixed iris |
| Angle of view | Horizontal:32°(T) to 96°(W);Vertical:18°(T) to 53°(W) |
| IR range | 30m |
| Zoom | Digital zoom:16x; Optical zoom: 4x |
| IR Wavelength | 850 nm |
| Target | Target detection/Target attribute recognition |
| Target recognition | Supported |
| Person | Person detection |
| Behavior analysis | Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering |
| Crowd flow analysis | Queue length/Head counting/Crowd flow statistics |
| Defocus | Supported |
| Alarm information | HTTPS certificate expiration/SDK certificate expiration/SDK root certificate expiration/SDK revocation certificate expiration/GB 35114 certificate expiration/802.1X certificate expiration/Log certificate expiration/Network disconnection/Network packet receiving anomaly/Full hard disk/Hard disk removal/Failure to write data to disks/Media stream interrupted/Log saving anomaly/Flash read/write/Temperature sensor fault/Hot swapping of network adapters/Video loss |
| Open OS | Supported |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400/GB/T 28181 (2011, 2016)/ONVIF Profile S/G/T/M |
| Video encoding format | MJPEG/H.264/H.265 |
| Video encoding channels | Triple streams |
| Intelligent encoding | Extra265/264/SuperCoding |
| Video frame rate | 60/50/30/25fps |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| Day/Night mode | Day/Night mode: automatic, color, B/W, and scheduled (default: automatic) Trigger mode: image triggered or internal signal triggered (default: image triggered) |
| WDR | 120dB |
| White balance | Auto/Manual/OnePush |
| HLC/BLC | Supported/Supported |
| Shutter speed | Shutter speed range: 1/100000s to 1/25s Default value in live video mode: 1/25s Default value in target checkpoint mode: 1/25s Default value in micro checkpoint mode: 1/250s Default value in behavior analysis mode: 1/25s |
| SNR | >45dB |
| Primary stream resolution | 1920×1080(1080P),1280×720(720P),720×576(PAL) |
| Secondary stream resolution | Secondary stream 1:1920×1080(1080P),1280×720(720P),720×576 (PAL),720×480(NTSC); Secondary stream 2:720×576(PAL),720×480 (NTSC),352×288(PAL),352×240(NTSC) |
| Video bit rate | 1080p to 4K: 512 kbit/s to 16 Mbit/s 1080p: 256 kbit/s to 16 Mbit/s 720p: 256 kbit/s to 8 Mbit/s D1: 256 kbit/s to 4 Mbit/s CIF: 32 kbit/sto 1 Mbit/s |
| Digital noise reduction | 2D/3D noise reduction |
| Audio encoding format | G.711a/G.711u/G.726/OPUS/AAC |
| Audio sampling rate | G.711a/G.711u/G.726:8K OPUS:8K/12K/16K/24K/48K AAC:8K/16K/22. 05K/24K/32K/44.1K/48K |
| Audio bit rate | G.711a/G.711u: 64 kbit/s; G.726: configurable (16/24/32/40 kbit/s); OPUS: configurable (16/24/32/40/64/96/128/160/192/224/256/288 kbit/s) AAC: 8 kHz sampling rate: 16/22/24/32/48 kbit/s 16 kHz sampling rate: 24/32/48/64/96 kbit/s 22.05/24/32 kHz samplingrate: 32/48/64/96/128 kbit/s 44.1/48 kHz sampling rate: 48/64/96/128/256 kbit/s |
| Protocols supported by IPv4 | TCP, IPv4, UDP, DHCP, DNS, CMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1X, QoS,SMTP, and PPPoE Note: The northbound protocol should adapt to the PPPoE dialup scenario. Note: 802.1X supports authentication of only one RADIUS service. |
| Protocols supported by IPv6 | HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6 |
| Web Browser | 32- or 64-bit Windows 7, Windows 8, or Windows 10 Google Chrome: 32-bit Google Chrome 38–49 (The IE Tab plug-in must be installed for Google Chrome 46–49.) 32- or 64-bit Google Chrome 50+ Internet Explorer: 32-bit Internet Explorer 10 and 11 Firefox: 32-bit Firefox 35–51 32- or 64-bit Firefox 70+ Microsoft Edge: 32- or 64- bit Microsoft Edge 50+ Restrictions: Compatibility problems may occur on the Firefox browser. (Pages may be out of order for a short time.) |
| Media security | Supports web- or SDK-based media stream encryption; supports a maximum of two channels of encrypted media streams; media stream encryption and full intelligence, target recognition, or image upload through SFTP/FTP cannot be enabled at the same time; after the intelligent analysis function is enabled, only one-channel stream encryption is supported; supports encrypted storage of data in SD cards. By default, RTSP uses MD5 digest authentication |
| Video digital watermark | Supported |
| Image digital watermark | Supported |
| User rights | Three user roles: administrator, advanced operator, and common operator |
| Security mode | User name and password authentication, 802.1X authentication, and HTTPS digital certificate |
| Secure boot | Supported |
| System intrusion detection | Promiscuous network adapter detection;Sensitive system file detection;Unauthorized super account detection;Botnet detection; Rootkit detection;Trustlisted program detection ;Privilege escalation detection |
| Storage port | One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB) |
| Alarm port | 2 input port and 1 output port |
| Network port | One RJ45 10M/100Madaptive Ethernet port |
| Communication serial port | RS-485 port |
| Audio port | Supported (one-channel LINE IN and one-channel built-in microphone)/Supported (one- channel LINE OUT) |
| Power type | DC12V,PoE(IEEE 802.3af) |
| Power consumption | Maximum:10W,typical:3.5W |
| Operating temperature | -30℃ to 55℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 5% to 95%(non-condensing) |
| Surge protection | 4kV |
| IP rating | IP67 |
| Equipment Anti Corrosion | Class C |
| IK rating | IK10 |
| Weight | Net weight 0.8kg;Gross weight 1kg |
| Dimensions | Device dimensions φ127mm×97mm;Package dimensions 147mm×147mm×112mm |
| Language | Simplified Chinese, English, French, Spanish, Portuguese (Europe), Portuguese (Brazil), Thai, Italian, and Turkish |
