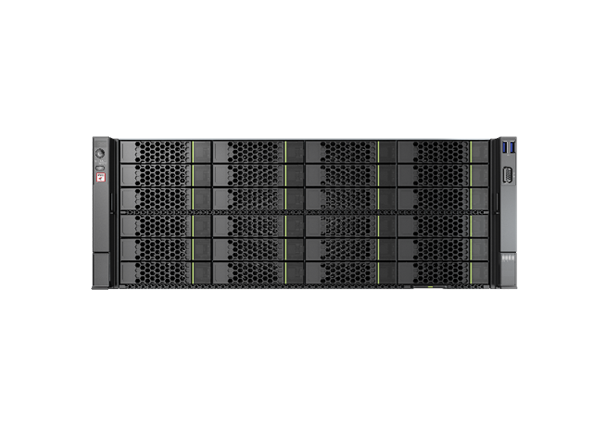

N700-1200(36)A
მარაგშია
Large-Capacity Video Recorder
- Fully symmetric convergence and direct stream storage architecture, reducing TCO.
- Hard-core innovation, optimal performance.
- Secure and reliable, 99.999% reliable of recording service, E2E security protection.
- Day and night customer service
აღწერა
Technical Spec
| Product model | 4U 2-socket rack |
| Processor | 2 x 32-core Kunpeng 920 processors, 2.6 GHz frequency |
| Memory | 64 GB (32 GB x 2) DDR4, 2933 MHz |
| System disk | 2 x 3.84 TB SAS SSD |
| Disk | Up to 36 x 8 TB/10 TB/16 TB SATA |
| Network Interface | 8*GE electrical ports+2*10GE optical ports |
| Management function | Containerized video and image management software, on-demand deployment of storage and forwarding services |
| Service function | Camera management, live video viewing, recording playback, and video wall management |
| Coding standard | H.264, H.265, and MJPEG formats |
| Network protocol | TCP, UDP, IPv4, IPV6, HTTP, HTTPS, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SMTP |
| Data protection | SafeVideo: RAID group failure, recording readable and writable |
| Value-added features | Supports direct stream storage, requiring no additional storage and forwarding servers for streaming media Supports backup modes, such as real-time and historical videos and images |
| Videos and image concurrent access and storage | A maximum of 1200 video channels at 2 Mbit/s，3000 images channels or 1280 images per second |
| Forwarding | A maximum of 1200 video channels at 2 Mbit/s, 3000 images channels or 1280 images per second |
| Southbound interconnection | Access plug-in integration, supports ONVIF, GB/T 28181, and video SDKs of mainstream camera vendor |
| Northbound interconnection | Supports interconnection with multiple video management platforms through RESTful interfaces. |
| Environmental Requirements | Operating temperature: 5 ~ 35°C storage temperature: -40°C to + 65°C Operating humidity: 8%–90%; non-condensing storage humidity: 5%–95%; non-condensing |
| Power supply | 2 x hot-swappable 2000 W AC PSUs in 1+1 redundancy mode Input voltage: 100-240VAC, 50/60Hz |
| Fan | 4 x hot-swappable fan modules in N+1 redundancy mode |
| Size (W x D x H) | 447 mm x 790 mm x 175 mm |
| Power consumption | Typical power consumption 785W; Maximum power consumption 890W |
