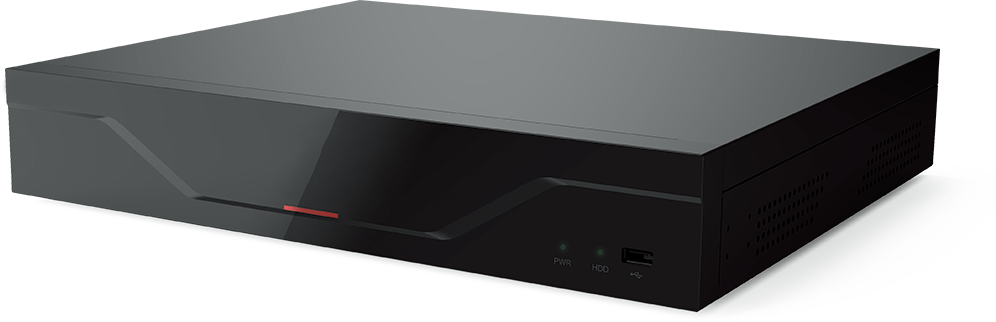

HWT-NVR800-A02-16P
მარაგშია
16-channel 2-disk network video recorder
- High performance and flexibility
- Ease of use and maintenance
- Security and reliability
- Day and night customer service
აღწერა
Technical Spec
| Preview | 1/4/6/8/9/10/12/13/14/16 panes |
| Disks | 2 |
| Local decoding | 8MP (4K): 2-channel 30 fps; 4MP: 4-channel 30fps; 2MP (1080p): 8-channel 30 fps The decoding performance deteriorates by 50% when the NVR800 works with HOLOWITS Cameras to enable the AI function. |
| Playback/Download | 128 Mbit/s playback |
| Video forwarding | 128 Mbit/s |
| Recording mode | Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms. |
| Behavior analysis | Works with SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection. |
| Video input | 16 channels, 168 Mbit/s access |
| Recording playback | 16-channel simultaneous playback; controls: fast forward(2x,4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or1/2x) |
| Playback/Download | 128 Mbit/s playback |
| HDMI | One HDMI 1.4 port; resolutions: 1024×768, 1280×720,1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160 |
| VGA | One VGA port; resolutions: 1024 x 768, 1280×720, 1280×1024, 1440×900, 1920×1080 |
| Memory | 8 GB DDR4 |
| CPU | 32-bit multi-core high-performance processor |
| Disks | 2 |
| Disk port | SATA2.0 |
| Disk type | 4TB/6TB/8TB per port |
| Recording mode | Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms. |
| Recording playback | 16-channel simultaneous playback; controls: fast forward(2x,4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or1/2x) |
| Search mode | By time, recording type, or AI event |
| Download mode | In batches or by segment |
| Network protocol | TCP, UDP, RTP, RTSP, HTTP, DNS, NTP, SMTP, and DHCP |
| Web access | Compatible with Internet Explorer 9, 10, and 11 |
| P2P CLOUD service | Access to CLOUD services and remote access through mobile apps |
| Device access | HOLOWITS SDK and ONVIF |
| Audio format | G.711a/G.711u |
| Video format | H.264/H.265 |
| Target reference libraries | 16 |
| Total target library capacity | 15000 |
| Structured data storage | Structured vehicle data storage |
| Log functions | operation logs, system logs, alarm logs, parameter modification logs, recording logs, intelligent log check, and log storage |
| Management mode | Web and LDU |
| Audio output | 1 channel, RCA port |
| Audio input | 1 channel, RCA port |
| USB port | 3 x USB ports (one USB 2.0 port on the front panel; oneUSB2.0 port and one USB 3.0 port on the rear panel) |
| Network port | 1 x 10/100/1000 Mbit/s Ethernet port; 16 x PoE port (10/100Mbit/s Ethernet port) |
| Standards | IEEE802.3af/at |
| Output power | ≤ 142 W |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 20% to 90% |
| Power consumption | ≤ 13 W (excluding hard disk and PoE output) |
| Weight | Net Weight 2.3 kg (excluding hard disks) Gross Weight 2.9kg (excluding hard disks) |
| Shelf | 1 U |
| Dimensions | 54 mm x 378 mm x 302 mm (H x W x D) |
| Power supply | 48 V/3.75 A |
| Certification | CE, RoHS, WEEE, CCC and CQC |
