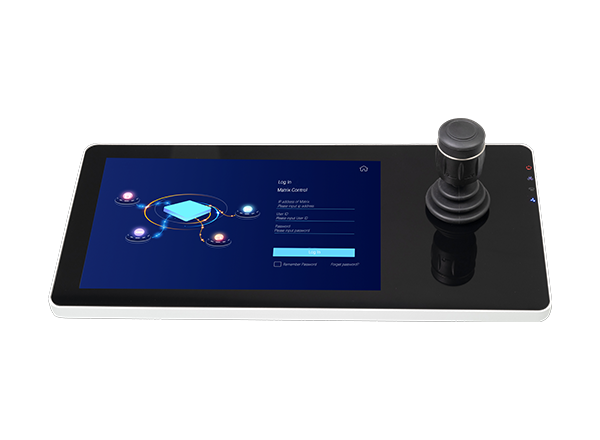

Network Keyboard Controller with A 10.1-inch Capacitive Touch Screen

10.1 inch capacitive touch screen, support multi-touch.
Its high definition decoding SOC chip to provide efficient encoding and decoding capabilities.
Hall type 4-D joystick for precise PTZ control and snapshot.
Support 1ch HDMI output, with maximum 4K@60Hz resolution.

აღწერა

Touch Screen	10.1″, Resolution 1280 * 800，Backlight is adjustable
HDMI	1，Maximum 4K@60Hz and Backward Compatible
Audio	Support HDMI Embedded Output Support Standard 3.5MM Audio Socket, Input and Output Dual Audio
Decoding Format	Compatible H.264、H.265 Encoding Support G711A,G711U,AAC Audio Encoding
Decoding Capability	Maximum 8ch 1080p@30fps Can Decode 1ch 8MP or 10MP or 12MP
Access	Support Onvif, RTSP
Control Mode	Support Onvif, RTSP Support Direct Control to Network Camera, Matrix Control and Platform or VMS control
Network Camera Control	PTZ control, Preset Read Back, Set and Call
Video Wall Control	Splicing, Segmentation, Plan, Macro Switching, Image Switching, etc.
Serial Port	1 RS-485，Speed Rate Can Set 1 RS-232，Speed Rate Can Set
Network Port	1 RJ45，1000M Self-Adaptive Ethernet
USB	2*USB2.0，Support Mouse, Keypad, U flash
Storage Temperature	-40℃ ～ 60℃
Working Temperature	-10℃ ～ 45℃
Working Humidity	10% ～ 90%（Non-condensing）
Voltage	Standard 5.5/2.1 Power Socket，DC12V/2A
Power	＜18W
Net Gross	1.9KG
Product Size	358(L)×173(W)×127(H)mm
Inner Box Size	435(L)×295(W)×185(H)mm
Certifucate	CE
