Display P12-SI

Display P12-SI

მარაგშია

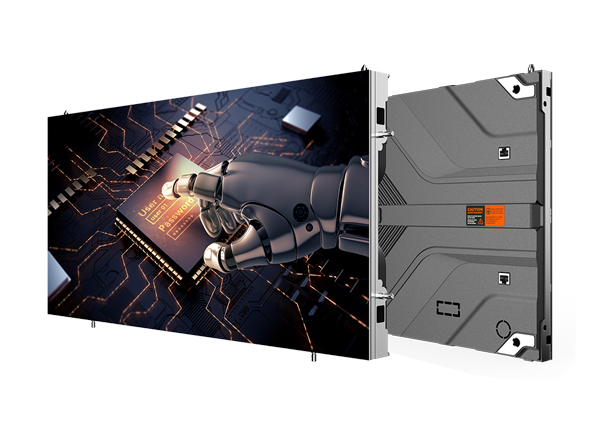

Ultra-thin Front Maintenance 16:9 LED Display

  • Thickness of 45mm, ultra-thin and ultra-light design
  • Front and rear installation, full front maintenance
  • XYZ six-way adjustment
  • Highly integrated system
  • Day and night customer service
Category:

აღწერა

Technical Spec

Pixel Pitch1.2mm
LED Type3-in-1SMD
Brightness600 cd/m²
Pixel Density640,000 pixels/m²
Pixels Per Panel480*270 pixels
Pixels Per Module120*270 pixels
Module Size150mm×337.5mm
Panel Size600mm×337.5mm×45mm
Weight5kg/panel
MaintenanceFront
Ingress ProtectionRear IP30
Curve0°~+5° (Concave)
Planeness≤0.15mm
Recommended Viewing Distance≥1.2m
EnvironmentIndoor
MaterialDie-cast Aluminum
CalibrationSupports Brightness and Chroma
Brightness ControlManual/Automatic
Color Temperature2,000K~9,500K Adjustable
Horizontal Viewing Angle160°
Vertical Viewing Angle160°
Contrast Ratio5000:1
Input Power <Max>111W/panel
Input Power <Typical>37W/panel
Input Voltage100~240VAC
Processing Depth16bit
Refresh Rate3840Hz
Video FrameRate50&60Hz
Input Power Frequency50~60Hz
LED Life Time100,000 Hours
OperatingTemperature/Humidity-10℃~+40℃/10~80%RH
Storage Temperature/Humidity-20℃~+60℃/10~85%RH
CertificationCE
