HWT-DEC832

HWT-DEC832

მარაგშია

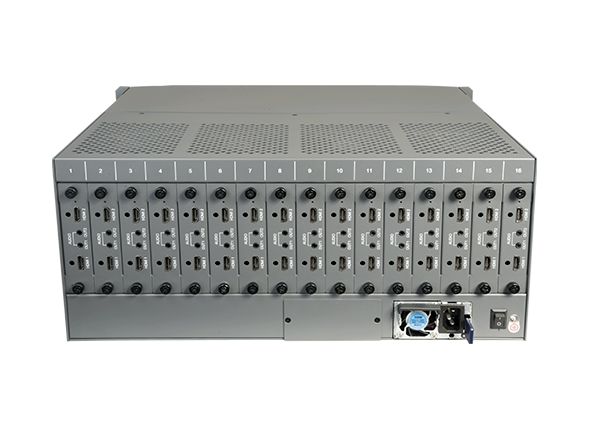

Network Matrix with 32 HDMI output

  • Support network mediainput
  • Support multipleresolution of output, it can manually set output resolution
  • Output supports maximum 3840×2160@60Hz
  • Support 4K, 1080P, 1080I, 720P, D1 video formats
  • H265/H264 compatible
  • Support 8ch 4K or 64ch 1080P or 128ch 720P decodingand display
  • Support video-splitting output, up to 64 windows split onone monitor
  • Day and night customer service
Category:

აღწერა

Technical Spec

inputopitional to have input card
Output32ch HDMI output
Ethernet100M/1000M self adaptive
Audio input16ch，by Ф3.5 audio interface
Audio output16ch，by Ф3.5 audio interface
Alarm outputsupport network alarm input
USB2.0support
RS232/422/485support
Network video decodingH.265,H.264
Network video input4K, 1080P,1080I,720P,D1
HDMI ouput resolution1024×768P@60hz,1280×720P@60hz,1366×768P@60hz, 1920×1080P@60hz,3840×2160@60hz
Video decode and display2ch 4K or 16ch 1080P or 32ch 720P or 64ch D1 per card (16 cards included by default)
Monitor splicing32 monitor to splice and display one video
Splitmaximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define.
OSDWindow, Channel,label, alarm, etc. information
Audio CodecG.711,G.726,ADPCM encode/decode
On/MuteSupports all channels and single channel set individually
Audio input16ch audio encode, it can open/close audio input.
Power supplyAC100 to 230V
