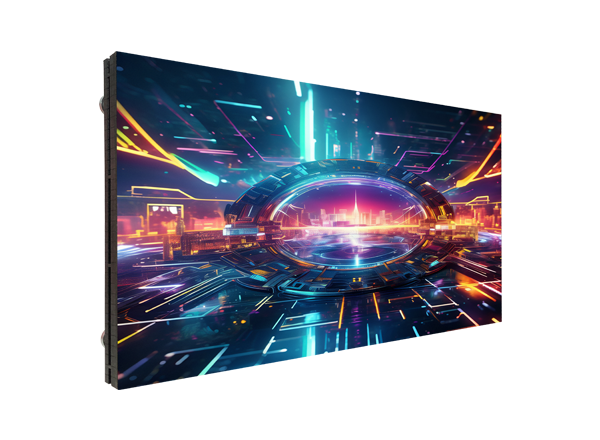

DPI-P Series Magnetic-mounted
მარაგშია
1.53 | 1.86 | 2.0 | 2.5 | 3.0mm P Series Indoor Full Color Magnetic-mounted LED Display
- 【DPI-P153M】1.53mm P Series Indoor Full Color Magnetic-mounted LED Display
- 【DPI-P186M】1.86mm P Series Indoor Full Color Magnetic-mounted LED Display
- 【DPI-P200M】2.00mm P Series Indoor Full Color Magnetic-mounted LED Display
- 【DPI-P250M】2.50mm P Series Indoor Full Color Magnetic-mounted LED Display
- 【DPI-P300M】3.00mm P Series Indoor Full Color Magnetic-mounted LED Display
- It has the characteristics of seamless splicing, perfect display, long service lifespan, fast frame changing speed, high refresh rate, good uniformity, wide viewing angle, high grayscale, natural color reproduction, etc. It is widely used in command and dispatch, security monitoring, video conference, studio display, and various conference display occasions.
- Day and night customer service
აღწერა
Technical Spec
| Model | DPI-P153M | DPI-P186M | DPI-P200M | DPI-P250M | DPI-P300M |
| LED encapsulation | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 black light |
| Pixel pitch | 1.53mm | 1.86mm | 2.0mm | 2.5mm | 3.076mm |
| Resolution | 422500 pixels/m² | 288906 pixels/m² | 250000 pixels/m² | 160000 pixels/m² | 105625 pixels/m² |
| Lamp beads/IC | High-quality copper wire/high refresh rate |
| Pixel configuration | 1R1G1B |
| Module resolution | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 |
| Module size (mm) | 320*160 |
| Module weight | ≤0.48Kg/pc |
| Working voltage | DC+4.2V~+5V |
| Best viewing distance | ≥4.6m | ≥5.5m | ≥6.0m | ≥7.5m | ≥9.0m |
| Horizontal viewing angle | ≥175° |
| Vertical viewing angle | ≥175° |
| Maintenance method | Front/rear maintenance |
| Control mode | Synchronous control |
| Drive device | Constant current drive |
| Refresh rate | ≥4200Hz |
| Frame rate | ≥60Hz |
| Scanning method | 52S | 58S | 40S | 32S | 26S |
| Brightness | 200-800CD/m² |
| Grayscale | 12/14/16/18bit |
| Contrast | ≥10000:1 |
| Attenuation rate (after working for 3 years) | ≤15% |
| Brightness adjustment method | 0-100% adjustment through supporting software; support automatic/manual, support setting brightness timing adjustment |
| MTBF | ≥20000H |
| Lifespan | ≥100000H |
| Failed rate | ≤1/100000 and no continuous failed pixels |
| Storage temperature | -35℃~+85℃ |
| Working temperature | -20℃~+60℃ |
| Working voltage (AC) | 220V±10%/50Hz/60Hz |
| Average power consumption | ≤125W/m² at 800CD/m² (≤95W/m² at 600CD/m²) |
| Maximum power consumption | ≤500W/m² at 800CD/m² (≤380W/m² at 600CD/m²) |
| Installation method | Magnetic installation |
| Brightness uniformity | ≥99% |
| Protection class | IP5X |
