P1-4LR(3.6)A
მარაგშია

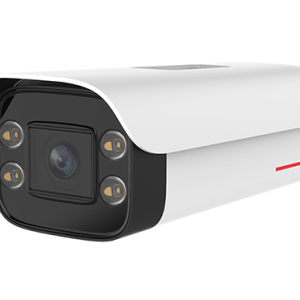

4MP IR/White Light Bullet Camera
- Supports backlight adaptation and overcast adaptation
- 1/3″ CMOS sensor
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- H.265 or H.264 HD encoding at a low bit rate
- 30 m IR range and 30 m white light range
- Built-in microphone for sound pickup
- Support for PoE
- Day and night customer service
აღწერა
Technical Spec
| Memory | DDR3 0.128 GB |
| Flash type | SPI NOR FLASH 16.0 MB |
| Focal length | 3.6mm |
| Max Aperture | F1.6 |
| Image sensor | 1/3″ CMOS/4MP 2560(H)*1440(V) |
| Lens aperture type | Fixed iris |
| Angle of view | Horizontal: 78°; vertical: 42°; error: ±5% |
| IR range | 30m |
| Illumination distance | 30m |
| IR Wavelength | 850 nm |
| Event detection | Motion detection, human figure detection and lens blocking detection |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol) /ONVIF Profile S/G/T |
| Video encoding format | H.264/H.265 |
| Video encoding channels | Dual streams |
| Video frame rate | 25 fps/20 fps (configurable) |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| Min illumination | Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled) |
| Day/Night mode | Day/Night mode: automatic, color, B/W, and scheduled (default: automatic) |
| WDR | 120db |
| White balance | Auto/Manual/Automatic tracking/Global/Locked |
| HLC/BLC | Supported/Supported |
| Shutter speed | Shutter speed range: 1/100000s to 1/3s Default value in live video mode: 1/25s |
| SNR | >45dB |
| Primary stream resolution | 2560×1440(4MP),1920×1080(1080P),1280×720(720P),720×576(PAL) |
| Secondary stream resolution | Secondary stream 1:720×576(PAL),720×480(NTSC),352×288(PAL), 352×240(NTSC) |
| Video bit rate | 1080p to 4K: 512 kbit/s to 8 Mbit/s 1080p: 256 kbit/s to 8 Mbit/s 720p: 256 kbit/s to 4 Mbit/s D1: 256 kbit/s to 2 Mbit/s CIF: 32 kbit/s |
| Storage port | One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB) |
| Network port | One RJ45 10M/100M adaptive Ethernet port |
| Audio port | Supported (one-channel built-in microphone) |
| Power type | DC12V,PoE(IEEE 802.3af) |
| Power consumption | Maximum: 5.32 W; typical: 2 W |
| Operating temperature | -30℃ to 60℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 5% to 95%(non-condensing) |
| Surge protection | 4kV |
| IP rating | IP67 |
| Equipment Anti Corrosion | Class C |
| Weight | Net weight 495g;Gross weight 632g |
| Dimensions | Device dimensions 228.6*83*84.1mm;Package dimensions 252*121*113mm |
| Language | Simplified Chinese, English, French, Spanish, Portuguese (Europe), Portuguese (Brazil), Thai, and Turkish |
