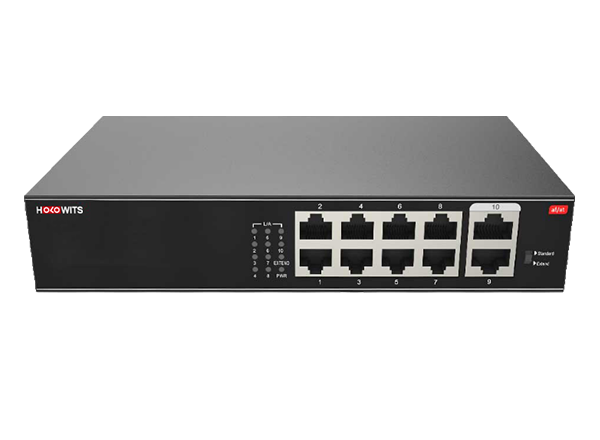

NSW E310A
მარაგშია
10-Port 10/100Mbps PoE Switch
- Includes 8 PoE ports and 2 uplink RJ45 ports for flexible connectivity
- Plug-and-play setup with auto-sensing 10/100Mbps ports
- Supports full-duplex and half-duplex communication modes
- Ideal for IP cameras, wireless access points, and VoIP phones
- Extend mode enables data and power transmission up to 250 meters
- Built-in power supply with total PoE budget of 100W (30W max per port)
- Compact, wall-mountable design with lightning protection (4KV)
- Complies with IEEE802.3af/at standards and CE/FCC/RoHS certified
- Day and night customer service
აღწერა
Technical Spec
| Fixed Port | 8*10/100Base-TX PoE ports (Data/Power), 2*10/100Base-TX uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-10 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Functional Switch | 100m: 100 meters transmission, 250m: 10M/250 meters transmission and VLAN mode. Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
| Twisted Pair Transmission | 10BASE-TX: Cat5 or later UTP(≤250 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 2Gbps (Non-blocking) |
| Forwarding Rate@64byte | 1.488Mpps |
| MAC | 2K |
| Buffer Memory | 1.25Mb |
| Jumbo Frame | 1536bytes |
| LED Indicator | Power:PWR (Green), network: L/A (Yellow), PoE: PoE (Green), Functional switch: EXTEND (Green) |
| MTBF | ≥100000h |
| PoE Port | Port 1 to 8 POE+ |
| Power Supply Pin | 1/2(+), 3/6(-) |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total Power/Input Voltage | 100W/ (AC100-240V) |
| Power Consumption | Standby <5W, Full load <100W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 2.2A |
| Operation TEMP/Humidity | -20~+55°C; 5%~90% RH Non-condensing |
| Storage TEMP/Humidity | -40~+75°C; 5%~95% RH Non-condensing |
| Dimension (L*W*H) | 195*130*40mm |
| Net/Gross Weight | 0.75kg / 1.0kg |
| Installation | Desktop, wall-mounted |
| Lightning Protection/Protection Level | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year |
