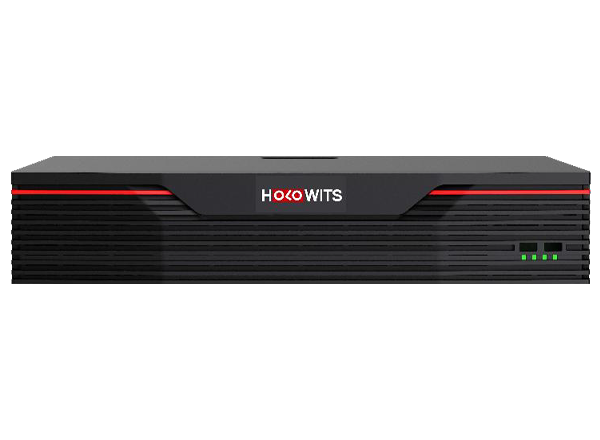

HWT-V7000-08A-LLM-P AI Pro
მარაგშია
Perimeter Detection Large Model Appliance
- High performance and flexibility
- Intelligent analysis
- Easy to deploy and maintain
- Day and night customer service
აღწერა
Technical Spec
| Computing power | 20 TOPS |
| CPU | 64-bit high-performance 4-core processor |
| Memory | 12 GB |
| Perimeter analysis (using a large model) | 64 channels (tripwire crossing detection, intrusion detection, loitering detection, area exit detection, fast movement detection, area entry detection, and parking detection) |
| Video access | 64 channels |
| Video storage | A minimum of 32 channels, 320 Mbit/s; 64 Mbit/s bandwidth deducted for image-based analysis in device-edge synergy |
| Video forwarding | A minimum of 64 channels, 320 Mbit/s |
| Playback/download | A minimum of 32 channels, 160 Mbit/s |
| Camera access | A single device supports access of up to 64 cameras. |
| Client | iClient (installed on a computer). A device supports access from up to two clients at the same time. |
| LDU login | The LDU supports two screens. |
| Maximum number of registered users on the iClient | 32 |
| HDMI | Two HDMI 2.0 ports |
| VGA | VGA ports can be extended using external conversion cables. |
| Live video viewing | Primary screen: 1/4/8/9/16/32/64 panes; secondary screen: 1/4/8/9/16 panes |
| Disk quantity | 8 |
| Disk port | SATA 3.0 |
| Disk type | Enterprise-level disks: 4 TB, 6 TB, 8 TB, 10 TB, or 16 TB |
| nan | Monitoring disks: 6 TB |
| nan | System storage: 32 GB eMMC |
| RAID level | RAID 0, RAID 1 (supported only by system disks), and RAID 5 |
| Recording mode | Manual recording, scheduled recording, and alarm-triggered recording |
| Recording playback | LDU: multi-channel simultaneous playback and segment-based playback |
| nan | iClient: single-channel playback and multi-channel simultaneous playback on the video wall |
| Recording protection | SafeVideo, recording lock, and resumable upload |
| Recording query method | By time or event |
| Recording download method | High-speed download, batch download, download by time segment, and onboard recording download |
| Media security | Multiple encryption algorithms such as AES256 for data transmission |
| Watermark | Digital watermarks can be added to video from cameras. Alarms are generated when video is tampered with. |
| Media transmission | Adaptive bandwidth, forward error correction (FEC) 1.0, super error concealment (SEC) 2.0, and multicast |
| Data Safe | Two copies of key system data are stored. If a fault occurs, service data can be automatically restored. |
| Video format | H.264, H.265, and MJPEG |
| Device access | HOLOWITS SDK, GB/T 28181, and ONVIF standards |
| Network protocol | TCP, UDP, RTP, RTSP, RTCP, HTTP, SNMP, NTP, SMTP, DHCP, SSH, SFTP, FTP, and RTSP |
| Platform access | Connected to the platform through GB/T 28181, ONVIF, or GA/T 1400 for services such as live video viewing, recording playback, PTZ control, and alarm reporting (only for NVRs) |
| Management mode | LDU or C/S (iClient S100/iClient S200) |
| Log download | Operation and run logs |
| Network port | 2 x GE electrical ports, support for the load balancing and multi-address modes |
| USB port | 3 x USB ports (2 x USB 2.0 ports on the front panel and 1 x USB 3.0 port on the rear panel) |
| Audio-in port | One RCA port |
| Audio-out port | One RCA port |
| Alarm port | 16 alarm-in ports and 4 alarm-out ports |
| Operating temperature | –10°C to +55°C (without disks, or with disks whose temperature specification is –5°C to +70°C) 0°C to 45°C (with disks whose temperature specification is 5°C to 60°C) |
| Operating humidity | 20% to 90% |
| Power supply | 100–240 V AC, 250 W |
| Power consumption | 120 W(including disks) |
| Fan | Intelligent speed control |
| Dimensions | 86.1 mm(H) x 447 mm(W) x 470 mm(D) |
| Chassis | 2 U |
| Weight | 6.6 kg(without disks) |
| Certification | CCC and CQC |
