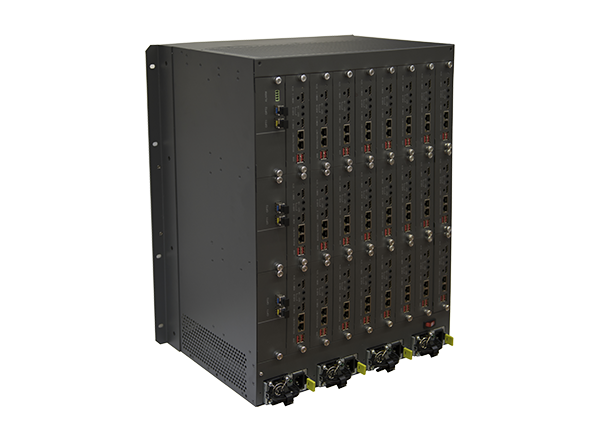

HWT-DEC848

HWT-DEC848

მარაგშია

Network Matrix System With up to 48ch HDMI output & optional HDMI /BNC input

  • Adopting H.264 encoding standard
  • Support decoding of network sources such as network cameras/NVR
  • Every HDMI output port has 64 channel video decoding channels, supporting 8-ch 1080p or 16-ch 720p video decoding on the wall simultaneously
  • Support decoding streams of multiple resolution no more than 8K(7680*4320)
  • H.264, H.265, video compression decoding
  • G.711, G.726, AAC, PCM audio compression decoding
  • Day and night customer service
Category:

აღწერა

Technical Spec

HDMI inputone card for 4ch HDMI input, 1920*1080@60; one card for 1ch HDMI input 3840*2160 @30hz
BNC inputone card for 8ch BNC input, support TVI, CVI,AHD and CVBS, Pleco D,P and Coaxitron protocol included
HDMI outputMaximum 48ch HDMI 2.0, 2ch HDMI per card, each HDMI supports 3840*2160 @30hz
Ethernet24, 100M/1000M adaptive RJ45 port
Audio input1ch per HDMI output card,Ф3.5 earphone socket
Audio output1ch per hdmi output card ,Ф3.5 earphone socket
alarm accessSupport network alarm access
USB2.02 per card
RS232/4221 per card
Network video decodingH.264
Channel4 or 1
Performance1ch 4K 30；4ch 1080p 60
H.265,H.2643840×2160@30Hz,1920×1080P@60Hz,1024×768P@60Hz,1280×720P@60Hz,1366×768P@60Hz
Video input interface1ch HDMI；4ch HDMI；8ch BNC
Maximum input resolution1ch HDMI @ 4K 30；4ch HDMI @ 1080p 60；8ch BNC @ 1080p 60
Input interface quantityevery HDMI output card offers 1ch audio in
Input interface type3.5mm socket
FormatG.711,G.726,ADPCM
Output typeHDMI 2.0
Output quantity48ch maximum by one chassis
Max. output resolution4K
Output resolution3840×2160@30Hz, 1920×1080P@60Hz, 1024×768P@60Hz, 1280×720P@60Hz,1366×768P@60Hz
FormatH265,264
Decoding resolutionup to 8K
Video Decoding Channelevery HDMI output can decode 48 channel video
Decoding delay150ms
Decoding performanceEach HDMI output supports 2ch 4K or 8ch 1080P or 16ch 720P or 32ch D1
FormatG.711,G.726,ADPCM
Output quantityevery HDMI output card offers 1ch audio output
Output interface3.5mm socket
Monitor splicingUp to 48 monitor splicing or any windows splice
Monitor splitting and displaySupport 4/9/16/25/32/48/64 split or user definition split
Power supply unitAC 100-230 , 360W
