HWT-DEC809

HWT-DEC809

მარაგშია

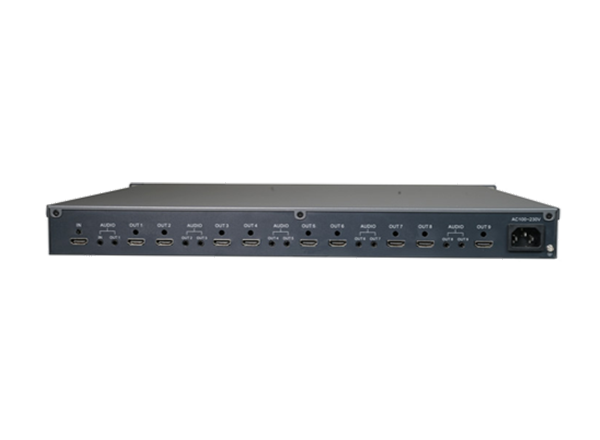

Network Matrix with 1ch HDMI in and 9ch HDMI output

  • Support network media input
  • Support multiple resolution of output, it can manually set output resolution
  • HDMI input support maximum 4K resolution
  • Output supports maximum 3840×2160@30Hz
  • Can decode video of 8K, 4K, 1080P, 1080I, 720P, D1
  • H265/H264 compatible
  • Every HDMI ouput port support 2ch 4K or 8ch 1080P or 16ch 720P decoding and display
  • Support video-splitting output, up to 64 windows split on one monitor
  • Day and night customer service
Category:

აღწერა

Technical Spec

Input1ch HDMI input, maximum 4K resolution
Output9ch HDMI output
Ethernet100M/1000M self adaptive
Audio input1ch，by Ф3.5 audio interface
Audio output9ch，by Ф3.5 audio interface
Alarm outputsupport network alarm input
USB2.0none
RS232/422/4851
Network video decodingH.265,H.264
Network video input4K, 1080P,1080I,720P,D1
HDMI ouput resolution1024×768P@60hz,1280×720P@60hz,1366×768P@60hz,1920×1080P@60hz,3840×2160@30hz
Video decode and displayevery hdmi can decode 2ch 4K or 8ch 1080P or 16ch 720P or 32ch D1
Monitor splicing9 monitor to splice and display one video
Splitmaximum 64 split,1/4/6/8/9/10/16/25/36/64 splitting mode and display，or split by user-define
OSDWindow, Channel,label, alarm, etc. information
Audio CodecG.711,G.726,ADPCM encode/decode
On/MuteSupports all channels and single channel set individually
Audio output9ch, by Ф3.5 audio interface
Power supplyAC100 to 230V
