DCT-S4K60-1
მარაგშია

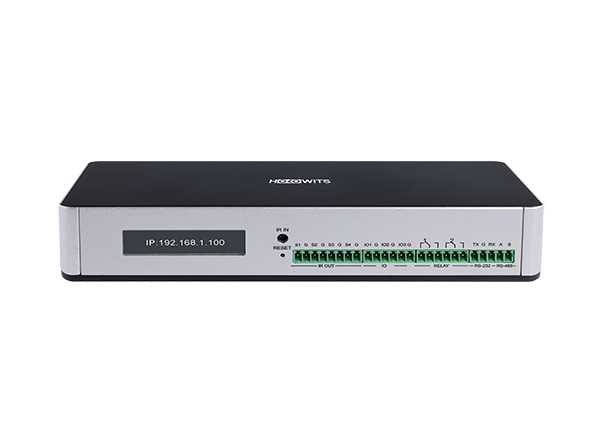

S Series 4K60 1IO Distributed Control Terminal
- Decentralized serverless architecture ensures 24/7 stability under embedded Linux
- Features auto-recovery, dual power (PoE + adapter)
- Compact desktop/rack design with real-time OLED status/IP monitoring
- Supports 4K@60 HDR10/12bit, 8K synchronization across nodes
- Multi-stream 4K/2K outputs with ultra-low latency (10ms)
- Uncompressed PCM audio and adaptive packet loss recovery (<10%)
- Integrated control with RS-232/485/IR/RELAY interfaces
- IR code learning, SIP-based intercom with USB headsets
- KVM auto-login and annotation tools (shapes/eraser)
- OCR text extraction and flexible wall layouts (1P/4P/9P + auto-fill)
- Robust security via SM2/SM3/SM4 encryption
- USB-over-network/fiber transparency and offline output continuity
- Sensor/device bidirectional communication for resilience
- Dynamic overlays for time, temperature, humidity, and people count
- Signal cropping, KVM zoomable messaging, and AI-driven data transfer
- Day and night customer service
აღწერა
Technical Spec
| Processing capability | Support 4K@ 60fps, 4K@ 30fps, 1920*1080P@60fps, 1920*1080P@30fps HD video signal acquisition and encoding and backward compatibility, support image formats such as YUV4:4:4/YUV4:2:2/YUV4:2:0 |
| Codec capability | Support H.264/H.265 video coding, PCM audio lossless transmission |
| Video port | 1*HDMI IN(support audio), 1*SDI IN, 1*HDMI OUT(support audio) |
| Audio port | 1*3.5mm stereo input, 1*3.5mm stereo output, input sensitivity: 775mV |
| USB port | 2*USB2.0 (KVM interface), 1*USB3.0 |
| Network port | 1*RJ45, 10/100/1000Base-T |
| OPTICAL port | 1*SFP |
| Serial port | 1*RS-485, 1*RS-232 |
| Infrared port | 1*IR learning window, 4*IR OUT |
| I/O port | 3*I/O port |
| Weak relay port | 2*RELAY port |
| Reset button | 1*pinhole RESET button |
| Display screen | 2.23-inch OLED display with128*32 pixels |
| Power supply | DC 12V /POE |
| Max power consumption | 12W |
| Ambient temperature | -10°C~45°C (working state) -15°C~ 45°C (non-working state) |
| Ambient humidity | 5%~90% (working status), no condensation |
| Weight | About 0.9kg |
| Dimension (L*W*H) | 222*117*43.8mm |
