CL ENC700A-1H

CL ENC700A-1H

მარაგშია

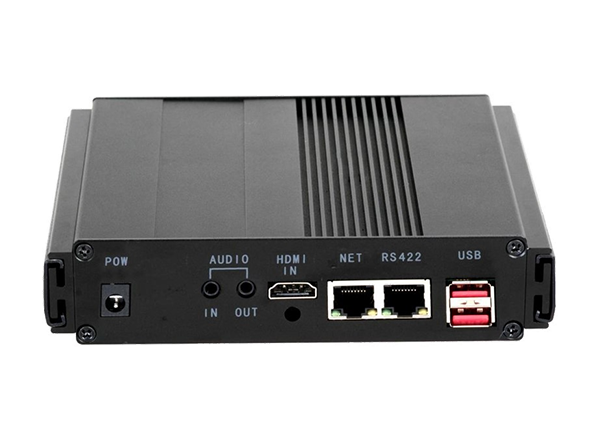

Network Encoder with 1ch HDMI input

  • Support H.264 encoding format
  • Support HDMI input, input support 4K, 1920*1080, 1280*720, 1366*768, etc.
  • Output support 4K, 1080P, 720P and D1
  • Support RTSP protocol
  • Support multi-stream selection, the main stream and sub stream
  • Support stream control, the range 0-10240kbps
  • Support variety of transmission protocol selection, TCP and UDP
  • Audio input support HDMI inner input & audio-line external 3.5mm port input



  • Day and night customer service
Category:

აღწერა



Technical Spec

HDMI input1ch, Self-adaptive input,support 4K,1080P,720P
Audio input1ch, 3.5mm
Audio output1ch, 3.5mm
RS232/4221
Ethernet100M/1000M self-adaptive
Input resolution4K,1920*1080,1280*720,1366*768
Encoding output4K,1080p,720p,D1, auto matchto input resolution
Encoding formatH.264
Encoding levelH.264 HP,H.264 MP,H.264 BP
Encoding frame1fps ～60fps
Video ratio16Kbit/s ～12Mbit/s
Multi-streamDual stream, main/sub stream available to set
Media streamSupport RTP/RTSP
Audio input2ch, HDMI internal input, 1ch 3.5mm input
encodingAAC,G.711a, G.711u
ratio64Kb/s~384Kb/s
Device power12V/2A DC,7W
