JH147A

JH147A Specifications

System specifications

Type

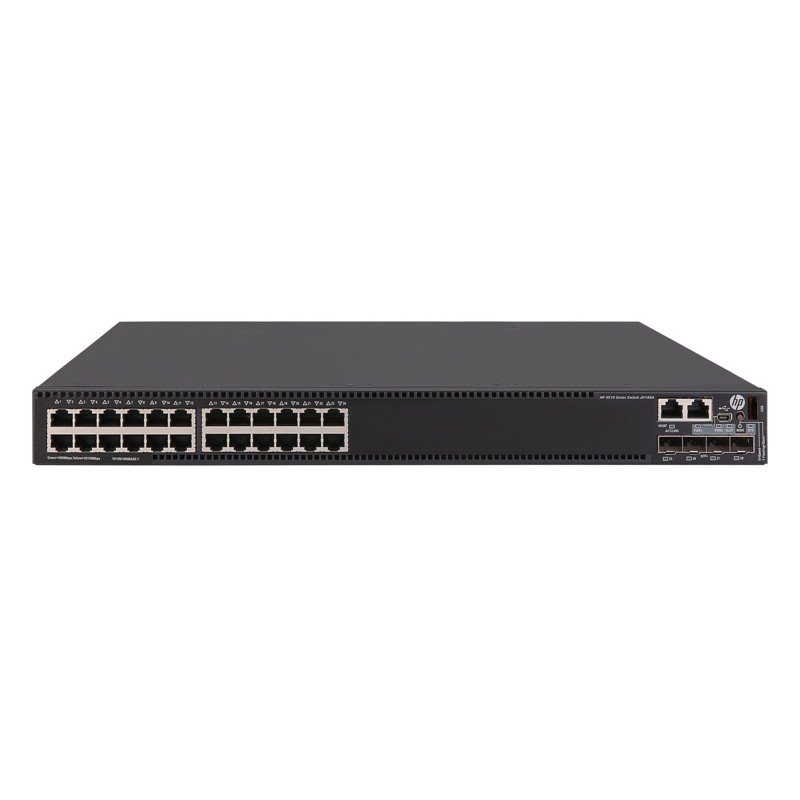

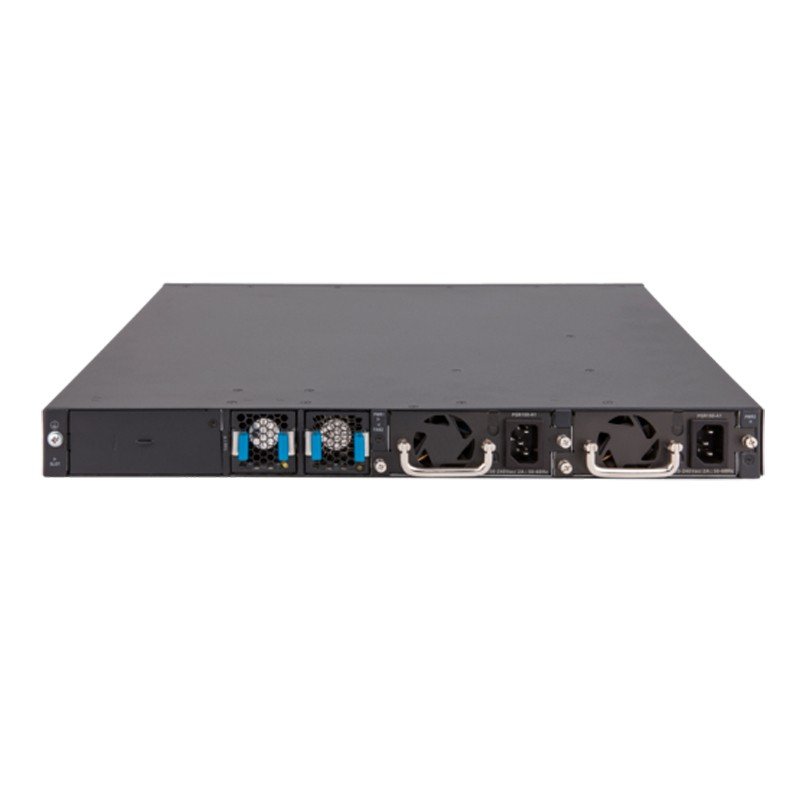

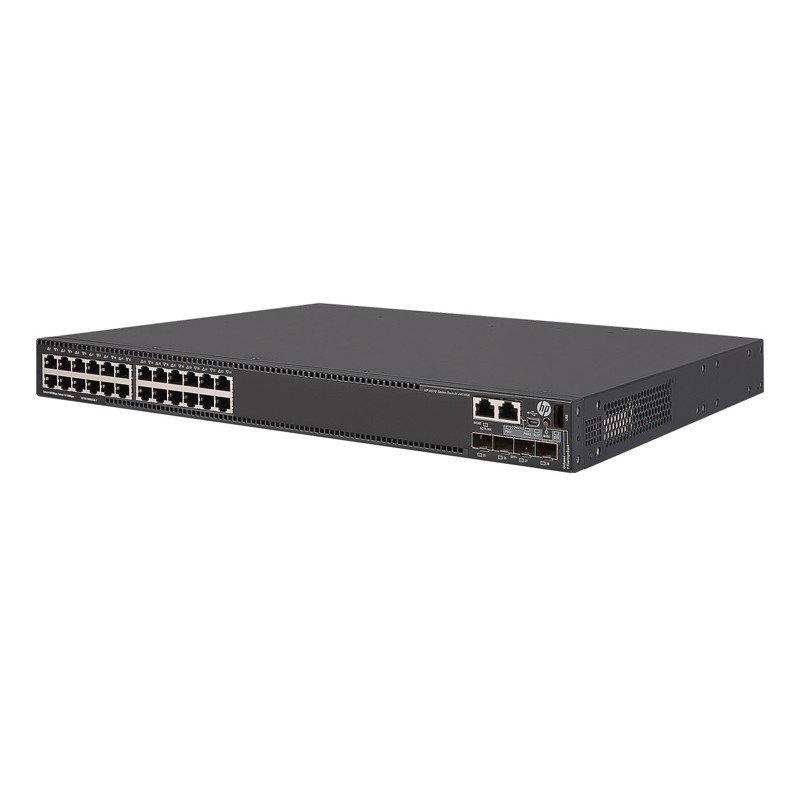

HPE FlexNetwork 5510 24G PoE+ 4SFP+ HI 1-slot Switch

I/O ports and slots

· 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

· Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACSec

· 4 SFP+ 10GbE ports

· 1 port expansion module slot

· Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module

Additional ports and slots

· 1 dual-personality (RJ-45 or USB micro-B) serial console port

· 1 RJ-45 out-of-band management port

· 1 USB 2.0

Performance

1000 Mb Latency

< 5 μs

10 Gbps Latency

< 3 μs

Throughput

up to 214 Mp/s

Routing/Switching capacity

288 Gb/s

Routing table size

IPv4 : 32768 entries

IPv6 : 16384 entries

MAC address table size

32768 entries

Physical specifications

Dimensions (W x D x H)

43.99 x 46 x 4.37 cm (17.32 x 18.11 x 1.72 in)

Weight

12.5 kg (27.56 lb)

Electrical specifications

Frequency

50/60 Hz

Maximum heat dissipation

238 BTU/hr (686.81 kJ/hr), Ranges from 201 BTU/hr to 443 BTU/hr, depending on power supply configuration

Voltage

100 – 240 V ac, rated (90 – 264 Vac, max)

-48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen)

Maximum power rating

150 W

Idle power

70 W

PoE power

• 740 W PoE+

Environmental specifications

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating relative humidity

10% to 90%, noncondensing

Nonoperating/Storage temperature

-40°C to 70°C (-40°F to 158°F)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 57.6 dB, High-speed fan: 66.9 dB

ISO 7779

Safety and emissions

Safety

UL 60950-1

EN 60825-1 Safety of Laser Products-Part 1

EN 60825-2 Safety of Laser Products-Part 2

IEC 60950-1

EN 60950-1

CAN/CSA-C22.2 No. 60950-1

FDA 21 CFR Subchapter J

ROHS Compliance

AS/NZS 60950-1

GB 4943 EAC (EurAsian Conformity Certification)

Emissions

EMC Directive 2004/108/EC

FCC (CFR 47, Part 15) Class A

EN 61000-4-11:2004

ANSI C63.4-2009

EN 61000-3-3:2008

VCCI V-3/2012.04

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-4-3:2006

EN 61000-4-4:2012; EN 61000-4-5:2006

EN 61000-4-6:2009

CISPR 22:2008 Class A

EN 55022:2010 Class A

EN 61000-4-29: 2000

CISPR 24:2010

EN 300 386 V1.6.1

VCCI V-3/2013.04 Class A

Immunity

Generic: EN 55024

ESD: EN300 386

Management

IMC – Intelligent Management Center

Command-line interface

Web browser

SNMP manager
