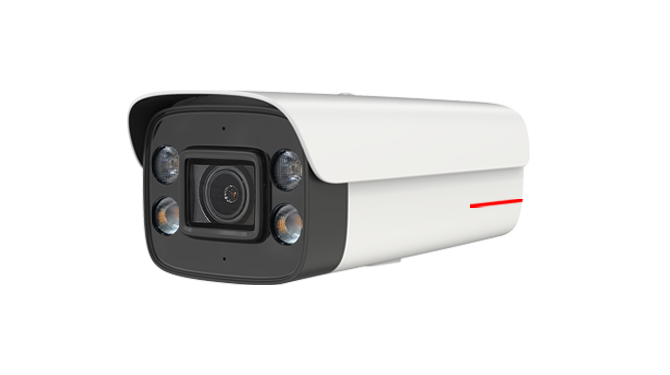

HWT-M2141-10-ELI-S (2.8–12 mm)

In Stock

1 TOPS computing power
Supports omni-data structuring, multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification
Backlight adaptation and overcast adaptation;
1/1.8″ CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Class D anti-corrosion

Description

Image sensor	1/1.8″ CMOS; 4MP 2560 (H) x 1440 (V)
Minimum illumination	Color: 0.001 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed)
Day/Night mode	Supported; automatic ICR, color (default), B/W, and scheduled; sensitivity levels: high (default), medium, and low; Image triggering/Internal triggering
White balance	Auto/Manual/OnePush
Digital noise reduction	2D/3D noise reduction
Wide dynamic range (WDR)	120 dB
Signal-to-Noise Ratio(SNR)	45dB
Optical Defogging/Algorithm-assisted Defogging	Not Supported/Supported
Smart Illumination	Not Supported
Image stabilization	Supported. Sensitivity levels are not supported
Video bit rate	Only for H.264 and H.265
Storage port	Provides one microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB).
Alarm port	2 input ports and 1 output port
Network port	One RJ45 10M/100M adaptive Ethernet port
Communication serial port	RS-485 port
Audio port	One-channel LINE IN or external MIC; one-channel LINE OUT
Power supply	12 V DC and PoE (IEEE 802.3at)
Iris type	Fixed iris
Target	Target detection, target image enhancement, and target attribute recognition
Target recognition	Supported
Person	Person detection and personal attribute recognition
Intelligent encoding	SuperCoding/Extra265/264
