eSFP-GE-SX-MM850
$66.00
In Stock
| Model: | Huawei eSFP-GE-SX-MM850 Optical Transceiver |
| Detail: | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.5km,LC) |
In Stock
- Day and night customer service
Description
eSFP-GE-SX-MM850 Specification | |
Transceiver form factor | eSFP |
Transmission speed | GE |
Center wavelength (nm) | 850 |
Standard compliance | 1000base-SX |
Connector type | LC |
Applicable cable and maximum transmission distance | · Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km · Multimode fiber (OM1): 0.275 km · Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km · Multimode fiber (OM2): 0.55 km · Multimode fiber (OM3): 1 km |
Transmit power (dBm) | -9.5 to -2.5 |
Maximum receiver sensitivity (dBm) | -17.0 |
Overload power (dBm) | 0 |
Extinction ratio (dB) | 9 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Net Dimension(D x W x H mm) | 110 x 70 x 37 |
Be the first to review “eSFP-GE-SX-MM850”
Related products

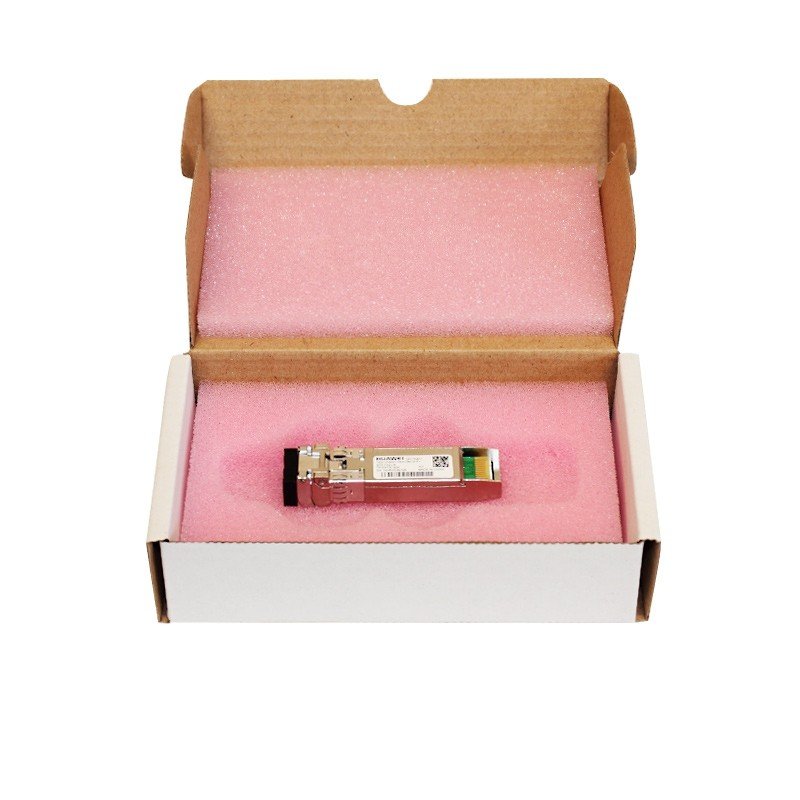

Huawei SFP-10G-LR
