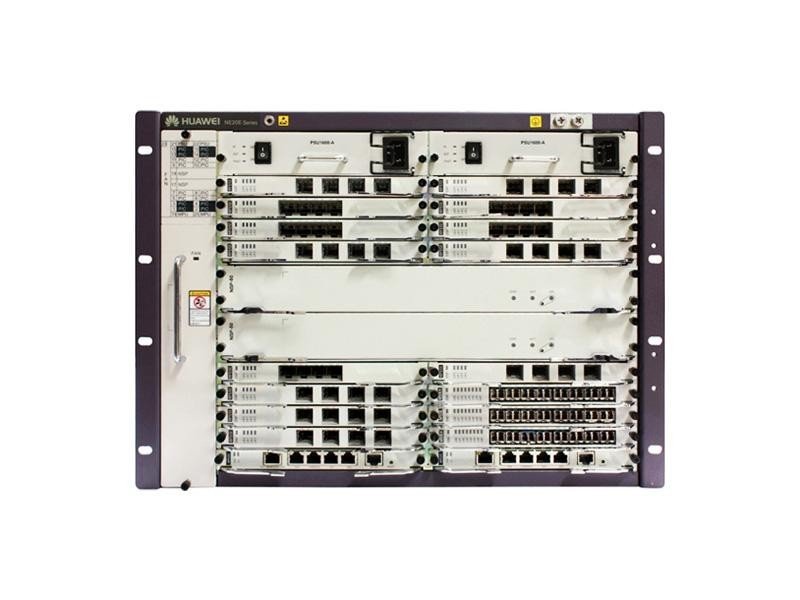

CR2M16BASA13

CR2M16BASA13 Specification

Switching Capacity

480 Gbit/s

Forwarding Performance

360 Mpps

Fixed Ports

—

Number of Slots

• 2 MPUs
• 2 NSPs
• 16 PICs

Dimensions

(H x W x D)

13.8 in. x 17.4 in. x 8.6 in. = 8U

(353 mm x 442 mm x 220 mm = 8U)

Power consumption (in full configuration)

696W (DC)

740W (AC)

Weight in Full Configuration

74.9 lb (34.0 kg) (DC)

79.3 lb (36.0 kg) (AC)

Interface Types

• 40 GE
• 10 GE
• GE/FE
• OC-3c/STM-1c POS
• OC-12c/STM-4c POS
• Channelized OC-3/STM-1 POS
• E1/CE1

Clock Synchronization

Synchronous Ethernet and IEEE 1588v2

Layer 2 Features

• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.3ad
• IEEE 802.1ab
• STP/RSTP/MSTP

IPv4/IPv6 Routing Protocols

• IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP
• IPv4/IPv6 dual stack
• IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE
• IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6
• IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing

L2/L3 VPN

• LDP over TE, VPLS, H-VPLS, and VPN policy-based routing
• Martini MPLS L2VPN
• VLL/VPLS accessing L3VPN
• MPLS/BGP L3VPN and inter-AS VPN

Multicast

• IGMPv1/v2/v3
• IGMP snooping
• IPv6 multicast
• Static multicast routing
• PIM-SM
• PIM-SSM
• MBGP
• NG MVPN

QoS

• WRED
• Five-level HQoS
• VLL/PWE3 QoS

Reliability

• NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP
• GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM
• BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6
• Fast convergence of BGP/IGP/multicast routes
• IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR
• Ethernet OAM, Y.1731, and PWE3 E2E protection
• ISSU and in-service patching for smooth software upgrades

Security

• ACL-based packet filtering
• AAA
• SNMPv3 encryption and authentication
• URPF, GTSM, DHCP snooping
• ARP attack defense
• SSHv2

Value-added Services

NAT, IPSec, GRE, and NetStream

OAM

Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah

Operating Temperature

32°F to 113°F

(0°C to 45°C)

Operating Relative Humidity

5% to 85%, non-condensing

Operating Altitude

≤ 9,842.5 ft. (3,000m)
