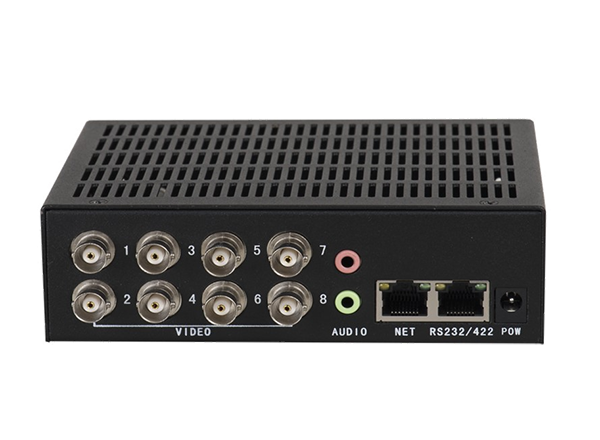

CL ENC700A-8B

CL ENC700A-8B

In Stock

Network Encoder with 8ch BNC input

  • Support 8 CH BNC input, support AHD, HD-TVI, HD-CVI, CVBS signal input
  • Support H264 & MPEG4 encoding
  • Support primary stream, sub stream configure individually
  • Suport De-interlace, Image enhancement, edge enhancement, 3D noise reduction, etc.
  • One 10/100/1000Mbps self-adaptive NET RJ45 port
  • Support TCP, UDP,RTP, RTSP, HTTP, SNMP, etc. Network protocol
  • Support standard RTSP transmitting protocol
  • Support multiple stream request
  • Day and night customer service
Category:

Description

Technical Spec

EthernetRJ45port, 100M/1000Mbpsself-adaptive
BNC8BNCport for video input
RS422RJ45, 1RS422
RS232RJ45, 1RS232
Audio1in 1out, 3.5mmmicro port
PowerStand alone:DC12V, chassis mount: power from backboard
Video inputSupport HD-TVI, HD-CVI, AHD& CVBS
Video input standardSuport NTSC,PAL, 960H, HD-TVI(720p@25Hz, 720p@30Hz), HD-CVI(720p@25Hz, 720p@30Hz)
EncodingH.264
Resolution1080p/720p/D1/CIF
Encoding capability4ch 1080p or 8ch 720p
Encoding frame rate1-30fps
Encoding code rate10Mbps maximum
Audio inputReserved
Audio outputReserved
Video formatH.264,MPEG4
Audio formatG.726,G.711a/u,AAC
Power consumption≤8W
