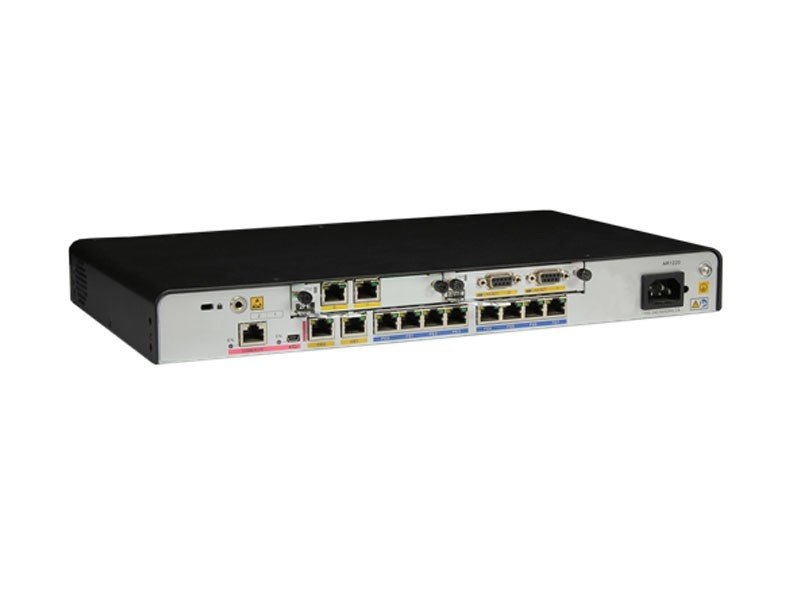

AR0M0012BA00

AR0M0012BA00 Specifications

Type

AR1220, 2GE WAN, 8FE LAN, 2 USB, 2 SIC

Software Version

V200R001C00 and later

Dimensions (W x D x H)

390.0 mm x 232.5 mm x 44.5 mm

Memory

512 MB

Flash

256 MB

Hard disk

None

Service and Router Unit (SRU)

Not supported

Network data encryption (SM1/2/3/4) card

Supported

Management interface

Supported

Console interface (RJ45)

Supported

Console interface (Mini USB)

Supported

USB 2.0 interface (host)

Supported

USB 2.0 interface (OTG)

None

Micro SD card (default)

None

Antenna interfaces

None

Service interfaces (standard configuration)

WAN interfaces: 2 GE electrical interfaces

LAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces

Interface number

LAN interfaces: FE0-FE7

Extended slots

2 SIC slots

Power module type

Built-in AC power module

Rated voltage range

100 V AC/240 V AC, 50 Hz/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

RPS150

Not supported

PoE

Not supported

Maximum PoE power for PDs

None

PoE+ interfaces

None

Weight

2.9 kg (6.39 lb)

Mounting brackets

Standard configuration

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating altitude

0-4000 m (0-13123 ft.)

Fan type

Built-in fans

Heat dissipation mode

Forcible air cooling

Installation mode

Desk mounting, wall mounting, rack mounting
