E1A-4LR(3.6)
მარაგშია

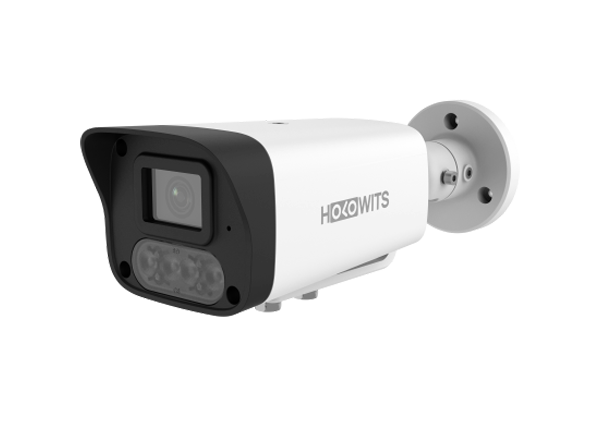

4MP IR/White Light Bullet Camera
- Supports backlight adaptation and overcast adaptation
- 1/3″ CMOS sensor
- 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
- H.265 or H.264 HD encoding at a low bit rate
- 30 m IR range and 30 m white light range
- Built-in microphone for sound pickup
- Support for PoE
- Day and night customer service
აღწერა
Technical Spec
| Memory | DDR3 0.128 GB |
| Flash type | SPI NOR FLASH 16.0 MB |
| Focal length | 3.6mm |
| Max Aperture | F1.6 |
| Image sensor | 1/3″ CMOS/4MP 2560(H)*1440(V) |
| Lens aperture type | Fixed iris |
| Angle of view | Horizontal: 78°; vertical: 42°; error: ±5% |
| IR range | 30m |
| Illumination distance | 30m |
| IR Wavelength | 850 nm |
| Event detection | Motion detection, human figure detection and lens blocking detection |
| Data openness | SDK (proprietary protocol)/REST API (proprietary protocol) /ONVIF Profile S/G/T |
| Video encoding format | H.264/H.265 |
| Video encoding channels | Dual streams |
| Video frame rate | 25 fps/20 fps (configurable) |
| Scene adaptation | Backlight adaptation/Overcast adaptation |
| Min illumination | Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025lux(F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled) |
| Day/Night mode | Day/Night mode: automatic, color, B/W, and scheduled (default: automatic) Sensitivity: 1–10 (default: 5) Nighttime start time: 18:00:00 by default Daytime start time: 06:00:00 by default Filtering time: 2s to 120s (default: 5s) |
| WDR | 120db |
| White balance | Auto/Manual/Automatic tracking/Global/Locked |
| HLC/BLC | Supported/Supported |
| Storage port | One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB) |
| Network port | One RJ45 10M/100M adaptive Ethernet port |
| Audio port | Supported (one-channel built-in microphone) |
| Power type | DC12V,PoE(IEEE 802.3af) |
| Power consumption | Maximum: 5.32 W; typical: 2 W |
| Operating temperature | -30℃ to 60℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 5% to 95%(non-condensing) |
