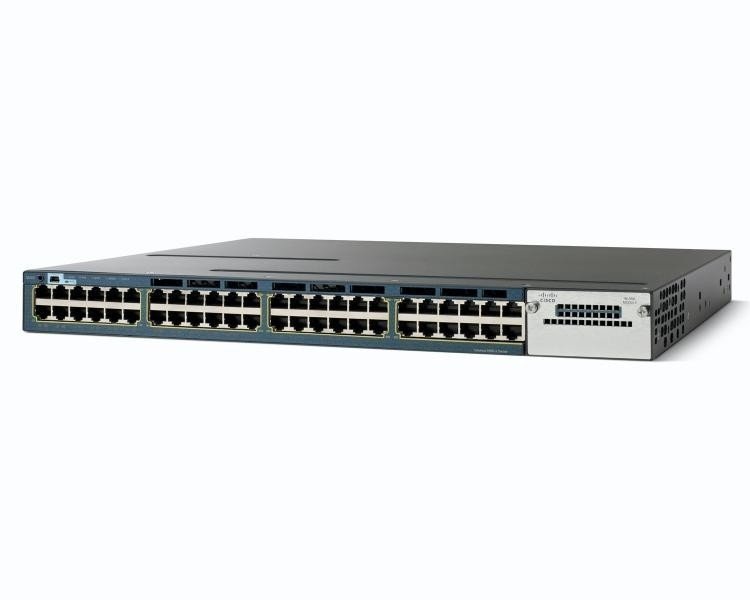

WS-C3560X-48U-E

$16,700.00
In Stock
Model:Catalyst 3560X 48 Port UPOE IP Services
Detail:Cisco Catalyst 3560-X Series Switches WS-C3560X-48U-E

PDF ATTACHMENT : ws-c3560x-48u-e-datasheet

In Stock
  • Day and night customer service
Category:

Description

Buying Cisco WS-C3560X-48U-E Switches for Gear Net Technologies will be an awesome method to give your office organization, an increase in speed and execution that likewise at an extraordinarily low cost.

Switches are the establishment of most business organizations, and how critical they are for your work environment. Through Cisco Switches, gadgets associated with your organization can speak with each other and furthermore with different organizations effectively, much the same as the Internet. Cisco conveys a far-reaching arrangement of exchanging answers for Enterprise Networks, server farms, and more modest organizations. These arrangements are improved for a wide scope of enterprises, including specialist co-ops, monetary administrations, and the public area.

The Cisco Catalyst WS-C3560X-48U-E switch is an undertaking class independent switch. This switch gives security, energy effectiveness, and simplicity of activity with inventive highlights. The Cisco Catalyst 3560-X upgrades efficiency by empowering applications like IP communication, remote, and video for a borderless organization experience.

Main features

  • 48U-E
  • switch
  • L3
  • managed
  • 48 x 10/100/1000 (UPOE)
  • desktop
  • rack-mountable
  • UPOE (800 W)

We are having Cisco Switches for sale and you can get these switches at an affordable rate. Take advantage of this sale and book your product now! Also, have a look at other Cisco Products, Cisco switches like WS-C4506E-S6L-2800, C3KX-SM-10G=, WS-C3560X-48U-E, etc. For any kind of queries regarding the product and it’s purchase, you can contact sales@gntme.com

WS-C3560X-48U-E Specification

General
Device TypeSwitch – 48 ports – L3 – managed
Enclosure TypeDesktop, rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)UPOE
PoE Budget800 W
PerformanceSwitching fabric bandwidth: 160 Gbps ¦ Forwarding performance: 101.2 Mpps
CapacityVirtual interfaces (VLANs): 1005 ¦ Switched virtual interfaces (SVIs): 1000
Jumbo Frame Support9216 bytes
Routing ProtocolOSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
FeaturesHot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
RAM256 MB
Flash Memory128 MB
Status IndicatorsPort status, port transmission speed, port duplex mode, power, system, link/activity
Interfaces48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 UPOE – 60 W ¦ 1 x USB Type A ¦ 1 x console – mini-USB Type B management ¦ 1 x RS-232 – RJ-45 management ¦ 1 x 10Base-T/100Base-TX – RJ-45 management
Expansion Slots1 (total) / 1 (free) x expansion slot
Expansion / Connectivity
Power DeviceInternal power supply
Installed Qty1 (installed) / 2 (max)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Power Provided1100 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
FeaturesRedundant Power System (RPS) connector
Rack Mounting KitOptional
MTBF189,710 hours
Compliant StandardsTUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Software IncludedCisco IOS IP Services
Width17.5 in
Depth19.5 in
Height1.8 in
Weight16.75 lbs
Power
Service & SupportLimited warranty – lifetime ¦ Limited warranty – power supply and fans – 5 years ¦ New releases update – lifetime
Min Operating Temperature23 °F
Humidity Range Operating5 – 95% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
